InstruSafe® Rigid Scope Tray 23-25″ dimensions:

• 30 1/8″ L x 3 1/4″ W x 2 3/8″ H
• 765mm L x 83mm W x 60mm H

Ranging from sinus and arthroscopy all the way to bariatric, our trays will properly protect your endoscopes during daily use. Whether it’s one scope or multiple scopes, small or large diameter configurations, we are able to provide endless possibilities for organization and protection.

These trays are designed to fit Karl Storz, Olympus^®, Stryker^®, Richard Wolf and other popular rigid endoscopes.

Discover more trays in our InstruSafe Literature

InstruSafe® Rigid Scope Tray 4-6″ dimensions:

• 11 1/4″ L x 3 1/4″ W x 2 3/8″ H
• 286mm L x 83mm W x 60mm H

Ranging from sinus and arthroscopy all the way to bariatric, our trays will properly protect your endoscopes during daily use. Whether it’s one scope or multiple scopes, small or large diameter configurations, we are able to provide endless possibilities for organization and protection.

These trays are designed to fit Karl Storz, Olympus^®, Stryker^®, Richard Wolf and other popular rigid endoscopes.

Discover more trays in our InstruSafe Literature

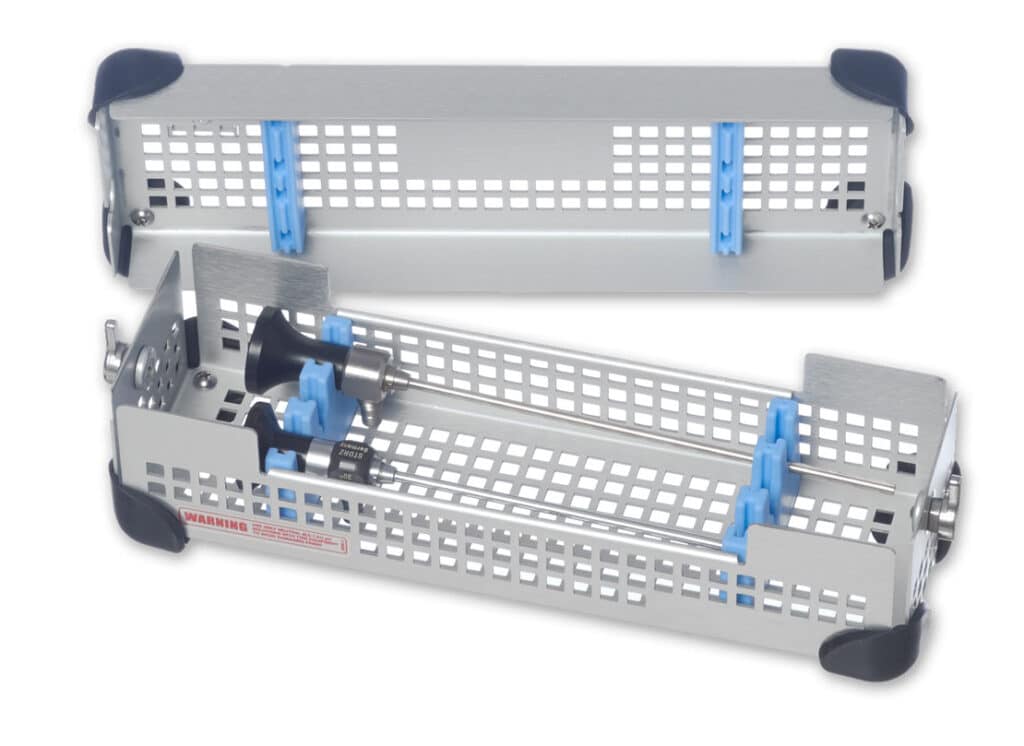

Holds:

Up to 3 (2-10mm) Scopes
Accommodates scopes from 4-7” in working length

11 L x 3 1/4 W x 2 3/8 H (in)
( 279mm L x 83mm W x 60mm H )
Wrapped Foot

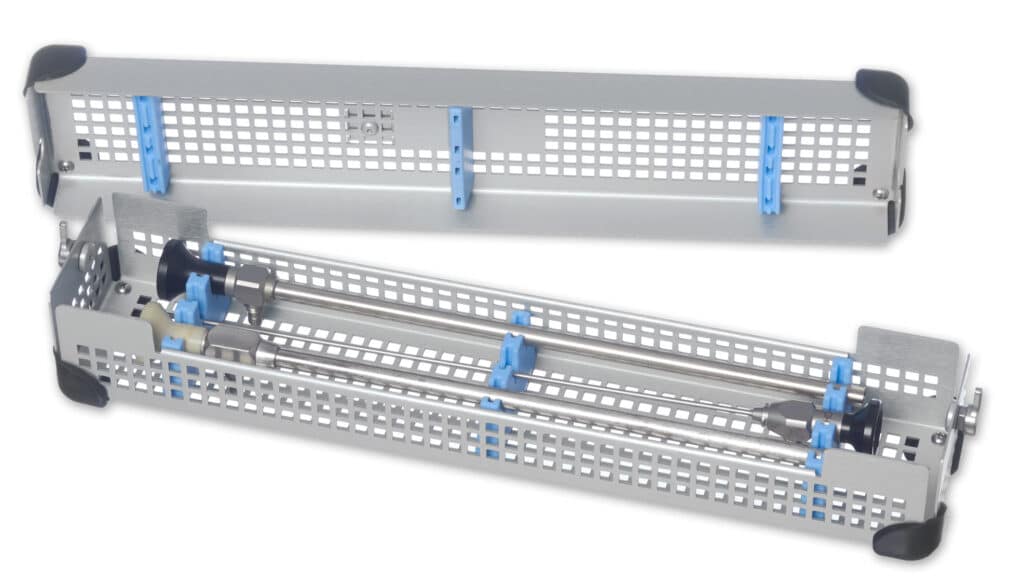

Holds:

Up to 3 (2-10mm) Scopes
Accommodates scopes from 5-13 1/2” in working length

17 1/2 L x 3 1/4 W x 2 3/8 H (in)
( 445mm L x 83mm W x 60mm H )
Wrapped Foot

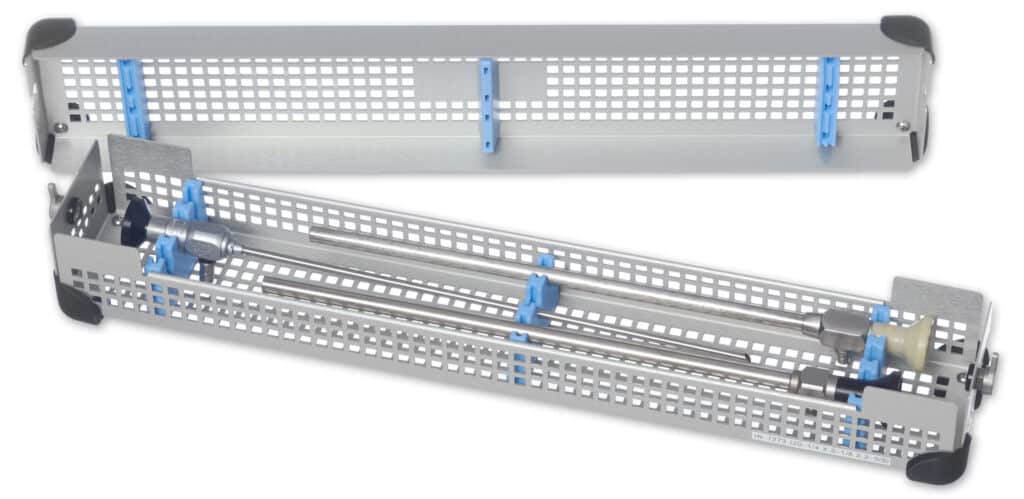

Holds:

Up to 3 (2-10mm) Scopes
Accommodates scopes from 7-16 1/2” in working length

20 1/4 L x 3 1/4 W x 2 3/8 H (in)
( 515mm L x 83mm W x 60mm H )
Wrapped Foot

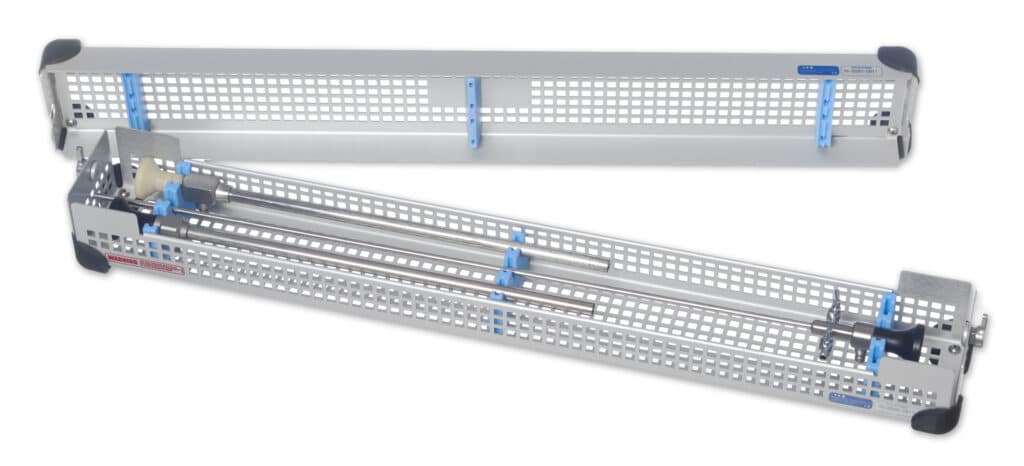

Holds:

Up to 3 (2-10mm) Scopes

Accommodates scopes from 9 1/2 – 21 1/2” in working length

25 1/4 L x 3 1/4 W x 2 3/8 H (in)

( 641mm L x 83mm W x 60mm H )
Wrapped Foot

Rounded, medical grade corner guards affix to InstruSafe Tray corners to reduce potential damage to the sterile wrap barrier. Rounders are included with the purchase of designated tray orders, but can also be ordered and easily added to most InstruSafe Trays.

The R foot is designed to be used when a tray will be sterilized in sterilization wrap.

US Patents | #9119611 | #D783856

Holds:

Up to 3 (2-10mm) Scopes
1 Cable
Accommodates scopes from 5-6” in working length

11 L x 6 3/8 W x 2 3/8 H (in)
( 279mm L x 162mm W x 60mm H )
Wrapped Foot

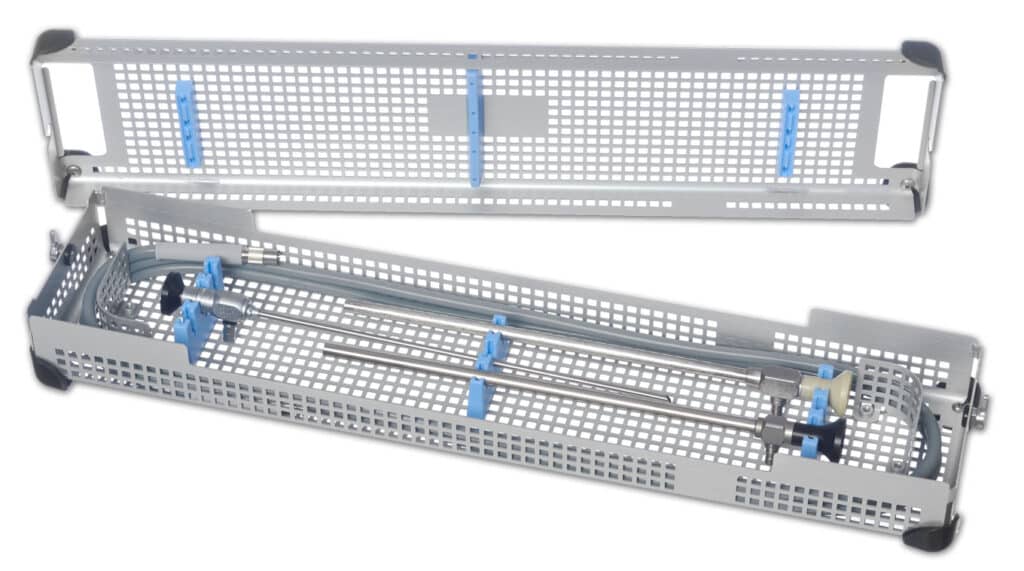

Holds:

Up to 3 (2-10mm) Scopes
1 Cable
Accommodates scopes from 5-13 1/2” in working length

20 1/2 L x 5 5/8 W x 2 3/8 H (in)
( 521mm L x 143mm W x 60mm H )
Wrapped Foot

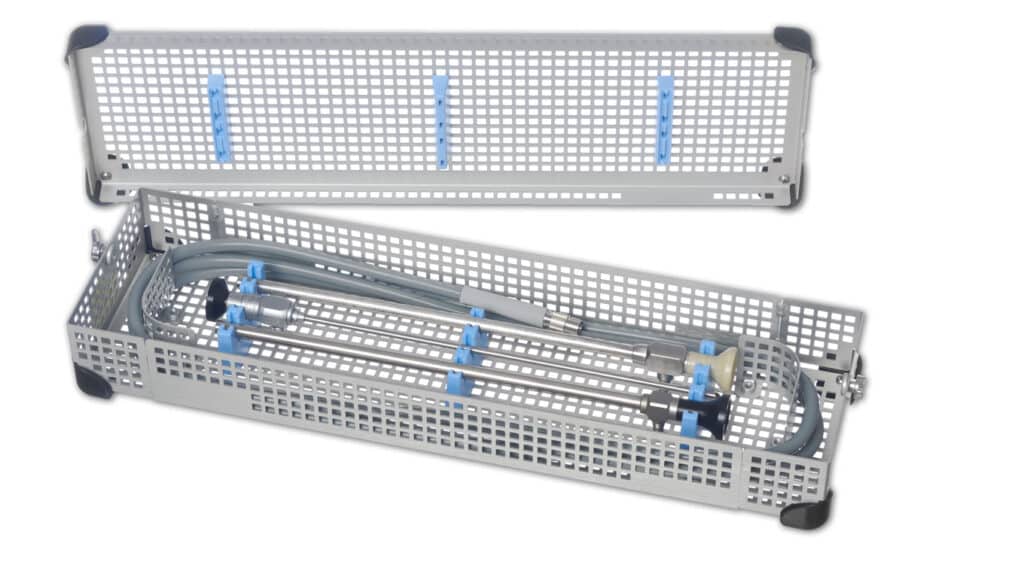

Holds:

Up to 3 (2-10mm) Scopes
1 Cable
Accommodates scopes from 6 1/2 – 17” in working length

25 L x 5 3/8 W x 2 3/8 H (in)
( 635mm L x 137mm W x 60mm H )
Wrapped Foot

Holds:

2 Endoscope Adapters

19 ⅝ L x 9 ⅝ W x 2 ⅜ H (in)
( 498mm L x 244mm W x 60mm H )

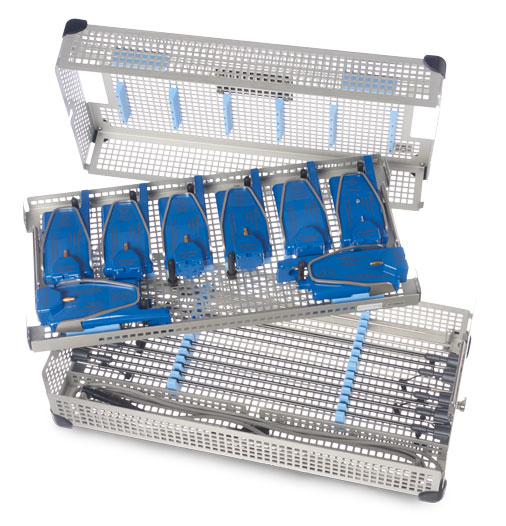

Holds:

8 Instrument Adapters
12 Instrument Shafts
Cables

19 ⅝ L x 9 ⅝ W x 4 ⅛ H (in)
( 498mm L x 244mm W x 105mm H )
Wrapped Foot

Holds:

1 Endoscope Adapter

19 ⅝ L x 9 ⅝ W x 2 ⅜ H (in)
( 498mm L x 244mm W x 60mm H )
Wrapped Foot

Holds:

1 Ultrasonic Adapter
1 Ultrasonic Transducer

25 L x 5 ⅜ W x 3 H (in)
( 635mm L x 137mm W x 76mm H )

Made entirely of medical grade silicone

Maximum protection for small parts

Tethered cover to prevent accidental loss

Can be attached to trays or placed on posts for easy removal

Textured internal surface and proper ventilation for efficient sterilant penetration

3/4″ / 19mm H

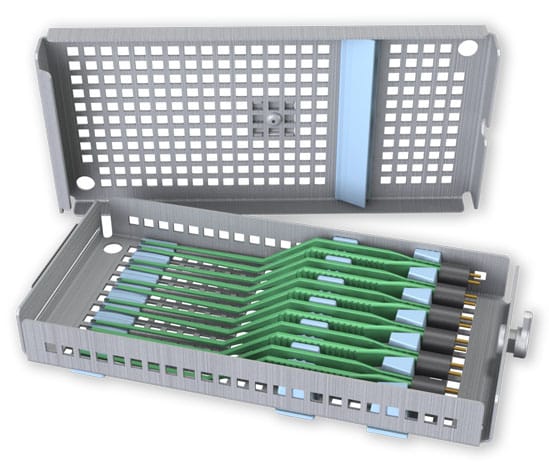

Holds:

6 Forceps

9 3/4 L x 4 5/8 W x 1 1/8 H (in)
( 248mm L x 248mm W x 29mm H )
